Variable Refrigerant Package Air Conditioner (VRP®)

VRP®

VRF performance and single package simplicity, it all comes together in the Friedrich VRP®. This award-winning plug & play product delivers variable-speed cooling, low ambient heating and make-up air, giving building owners and developers an industry-leading, high-tech, cost-effective alternative to the complex systems in the industry. Our VRP® product line is available in 1, 2, and 3-ton capacities, as well as the all-new VRP® Studio with 7,000 BTUs and a smaller footprint. Learn more about our new VRPstudio®.

VRP Awards



Download Brochure Plan & Spec Rep

More About This Product

Learn about product features, tech specs, product documents & downloads, model sizing and accessories. Still need help?  View our Professional Support Page for more support topics.

Features

The VRP® - VRF Performance in One Package

Find out what makes the Friedrich VRP® your TOTAL HVAC Solution.

HubSpot Video



Conditioned Fresh Air

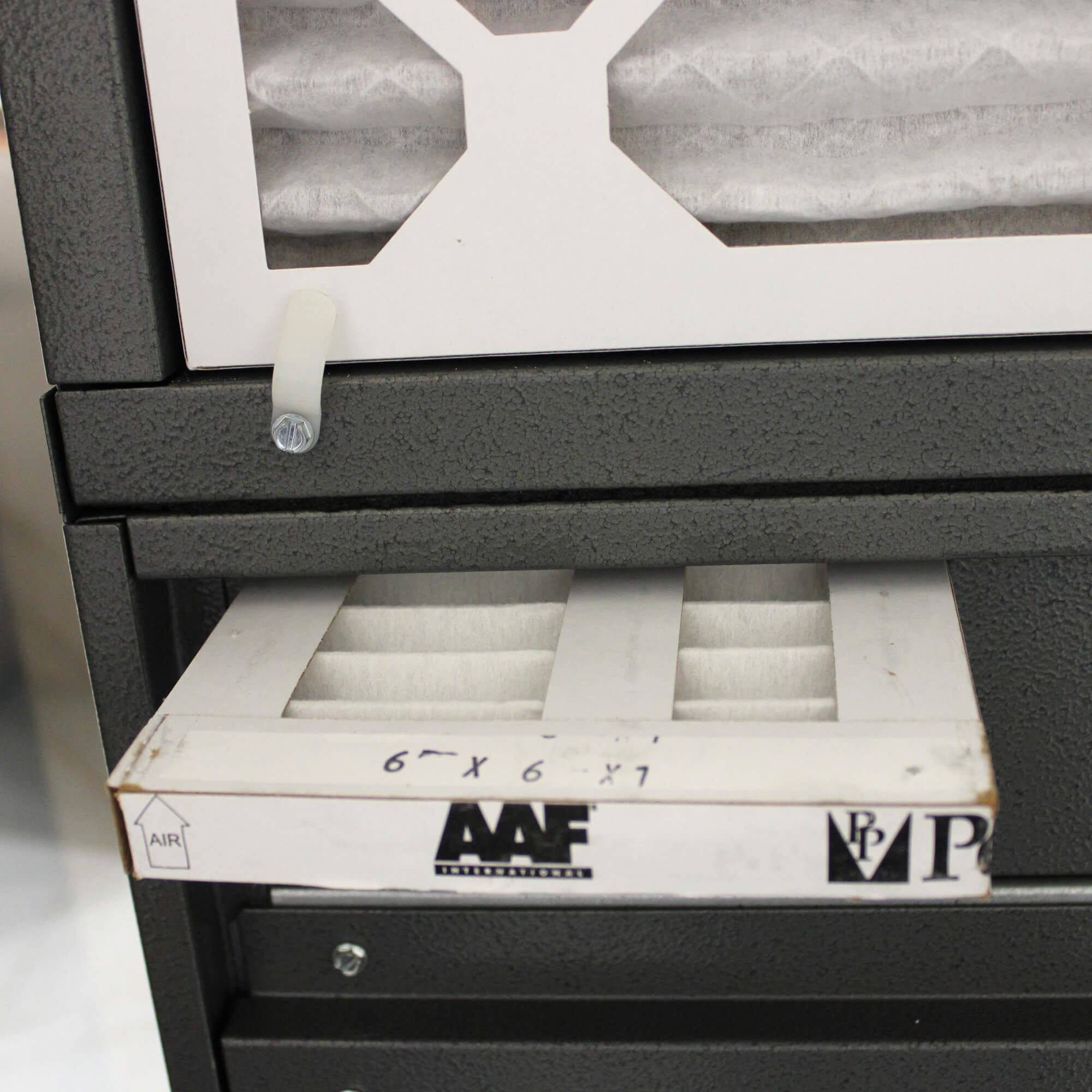

FreshAire® system can bring in up to 130 CFM of conditioned, MERV 8-filtered outside air and helps in achieving ASHRAE 62.1–2013 for commercial buildings. VRP® reduces cost and complexity associated with dedicated outside air systems.

Precision Inverter® Technology

Precision Inverter® variable speed compressors deliver efficiencies up to 15 SEER2. Compressors operate down to 40% of rated capacity, or up to 120%, matching the unit output to the actual demand of the space for increased comfort and lower energy consumption.

Best-In-Class Cooling Performance

Can operate at up to 120% of rated capacity to reach set point quickly. Unit will automatically adjust capacity to meet specific cooling conditions.

Meet the ALL-NEW VRP® Studio

The award-winning VRP® designed specifically for smaller spaces with 7,000 BTUs and a smaller footprint.

HubSpot Video



Superior Efficient Heating

VRP® features exceptional low-ambient heat pump operation down to 0˚F. Significant energy rebates are available with huge savings over resistance heat.

Installation

One room, one unit. The VRP® offers single package simplicity with the combined performance of VRF and complex make up air systems, all at a lower total installed cost.

True Humidity Control

Each unit is equipped with a sophisticated humidity control system with on-board sensors and humidistats. Re-heat coil maintains desired RH levels on more humid days. Optional base pan heater helps melt down condensate ice buildup and/or snow infiltration inside the chassis when installed in a low-ambient climate zone.

Specifications

Specifications By Model

View basic model specs below. See product brochure for more details.

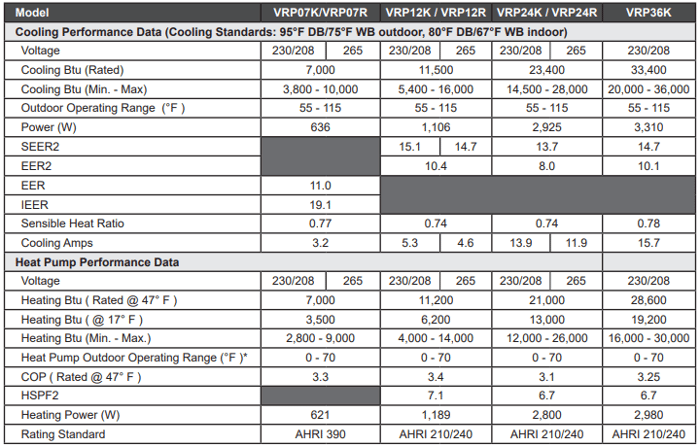

VRP Specs
Documents

Documents & Downloads For This Model

View manuals, guides, warranties, videos and other resources for this model.

2022

How to use Friedrich's Interactive Parts Viewer Video
2020

VRP offers True Make-Up Air (MUA) Video
2020

VRP with True Humidity Control Video
2021

VRP Brochure

2021

Introducing Friedrich's new VRP Studio
2021

Meet Friedrich's VRP Studio
2021

VRP studio: Designed with Hospitality in Mind
2022

VRP Brochure

2022

VRP Studio Brochure

2023

VRP Brochure

2023

VRP Studio Brochure

2022

VRP 12 Energy Guide
2022

VRP 36 Energy Guide
2022

VRP 24 Energy Guide
2022

UVT1 Accessory Installation Manual
2022

VRP Accessory VRPXWPC-8 and VRPXWPC-14 Manual
2022

VRPstudio Revit Family File (RFA file compatible only)
2022

VRP12 Revit Family File (RFA file compatible only)
2022

VRP24 Revit Family File (RFA file compatible only)
2022

VRP36 Revit Family File (RFA file compatible only)
2020

VRP Accessory VRPXWP Manual
2022

VRP Accessory VRPXAPPR1 Manual
2022

VRP Accessory VRPXAP1 Manual
2022, 2023

VRP Accessory VRPXEMWRT2 Manual
2022, 2023

VRP Accessory VRPXEMRT2 Manual
2022

VRP Submittal
2023

VRP Submittal
2022

VRP Warranty
2019

VRP Product Line Video
2017

An Introduction to the VRP
2022

VRP Product Profile
2023

VRP Product Profile
2022

VRP 12-24 Installation & Operation Manual
2022

VRP 36K Installation & Operation Manual
2022

VRP MERV 13 Bracket Installation & Operation Manual
2022

VRP Studio (7 k) Installation & Operation Manual
2020, 2021, 2022

VRP Studio (7 k) Service and Parts Manual
2017, 2018, 2019, 2020

VRP 12-36K A-C Model Service and Parts Manual
2019, 2020, 2021, 2022, 2023

VRP 12-24 BTU D Model, 36K Service and Parts Manual
2022

VRP 12K BTU E Model Service and Parts Manual
2023

VRP 36K Installation & Operation Manual
2023

VRP Studio (7 k) Installation & Operation Manual
2023

VRP 12-24K Installation & Operation Manual

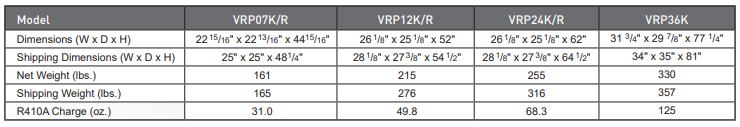

Sizing

Chassis Sizes for this Product

View basic chassis dimensions available below. See product brochure for more details.

W: 22 15⁄16“ x D: 22 13⁄16“ x H: 44 15/16” VRP 7K Model Dimensions Applies to model #’s: VRP07K, VRP07R

W: 26 1⁄8“ x D: 25 1⁄8“ x H: 52” VRP 1 Ton Model Dimensions Applies to model #’s: VRP12K, VRP12R

W: 26 1⁄8“ x D: 25 1⁄8“ x H: 62” VRP 2 Ton Model Dimensions Applies to model #’s: VRP24K, VRP24R

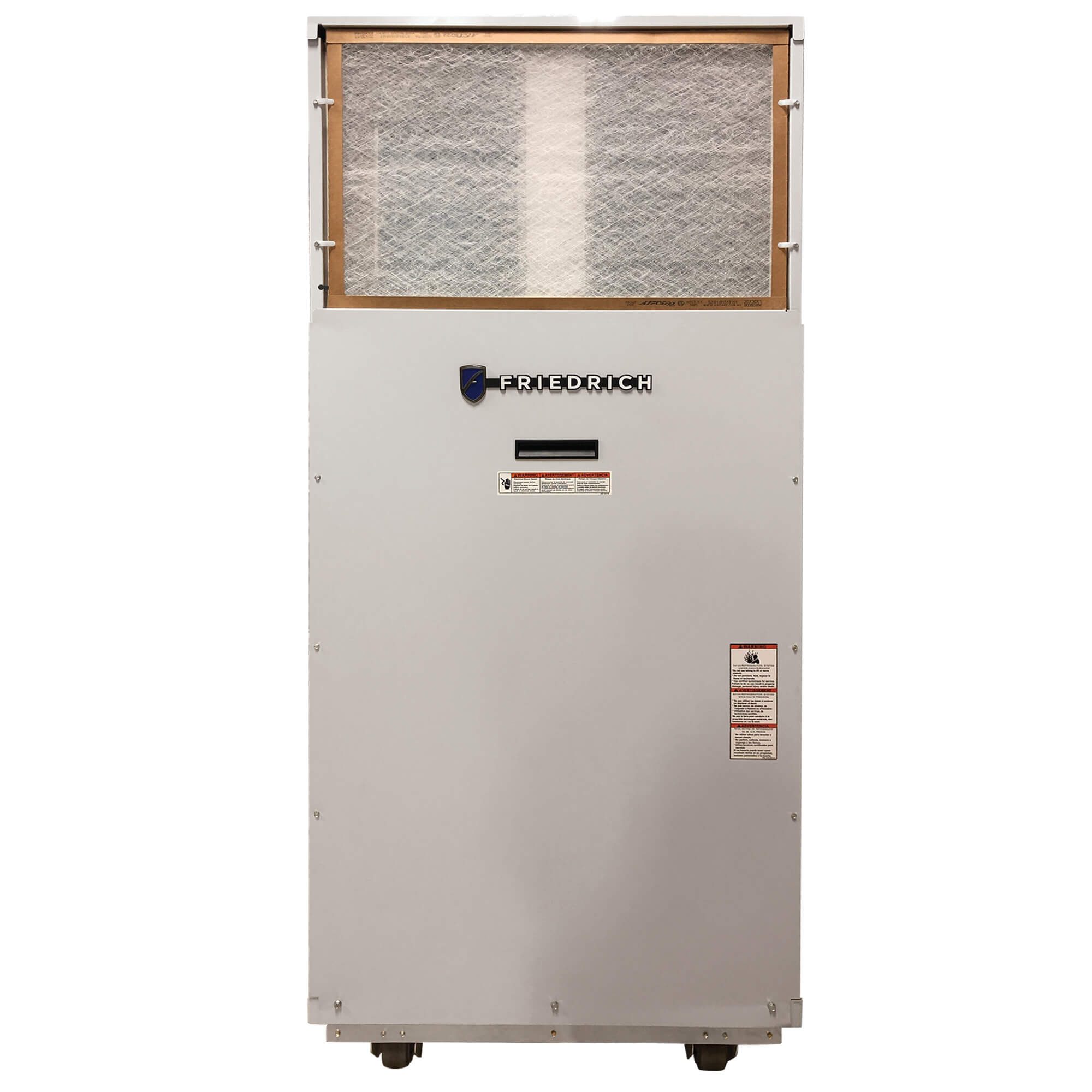

W: 31 ¾" x D: 29 7/8” x H: 77 ¼" VRP 3 Ton Model Dimensions Applies to model #’s: VRP36K

Accessories

Accessories For This Product

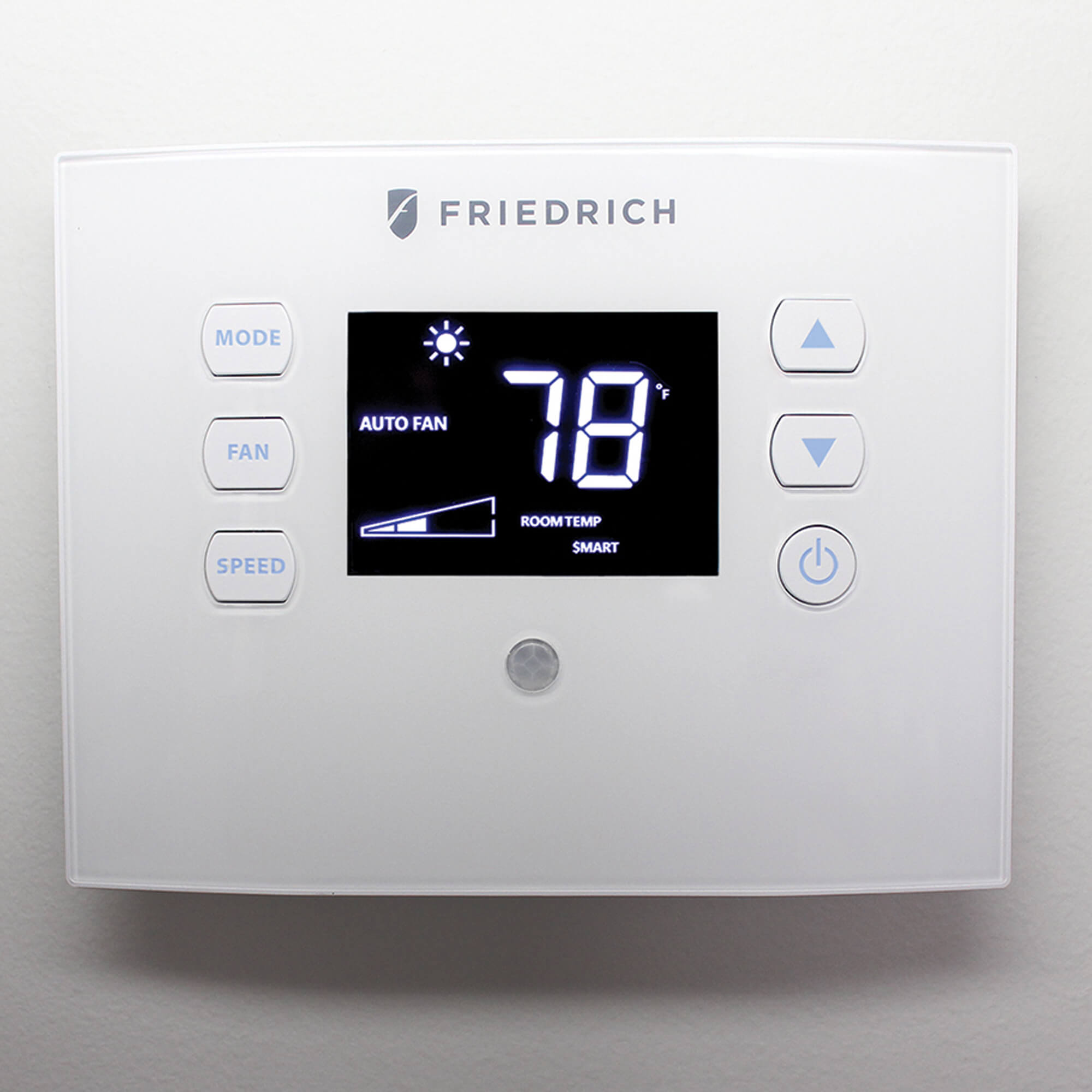

VRP Wired Energy Management Wall Controller with Occupancy Sensor, Model #: VRPXEMRT2

Applies to model #’s: all VRP Models

VRP Wireless Energy Management Controller with Occupancy Sensor, Model #: VRPXEMWRT2

Applies to model #’s: all VRP Models

VRP Wall Plenum, Model #: VRPXWPA-8 & VRPXWPA-14

Applies to model #’s: VRP12 Models Only

VRP Return Air Grille/Access Panel, Model #:VRPXAP1

Applies to model #’s: all VRP Models

VRP Wall Plenum, Model #: VRPXWPB-8 & VRPXWPB-14

Applies to model #’s: VRP12 & VRP24 Models Only

VRP Architectural Louver, Model #: VRPXALA/B/C

Applies to model #'s: all VRP Models, but must mate with matching wall plenum (A/B/C)

VRP Perimeter Return Panel, Model #: VRPXAPPR1

Applies to model #'s: VRP12 and VRP24
