Vertical Package Terminal Air Conditioner

Vert-I-Pak^®

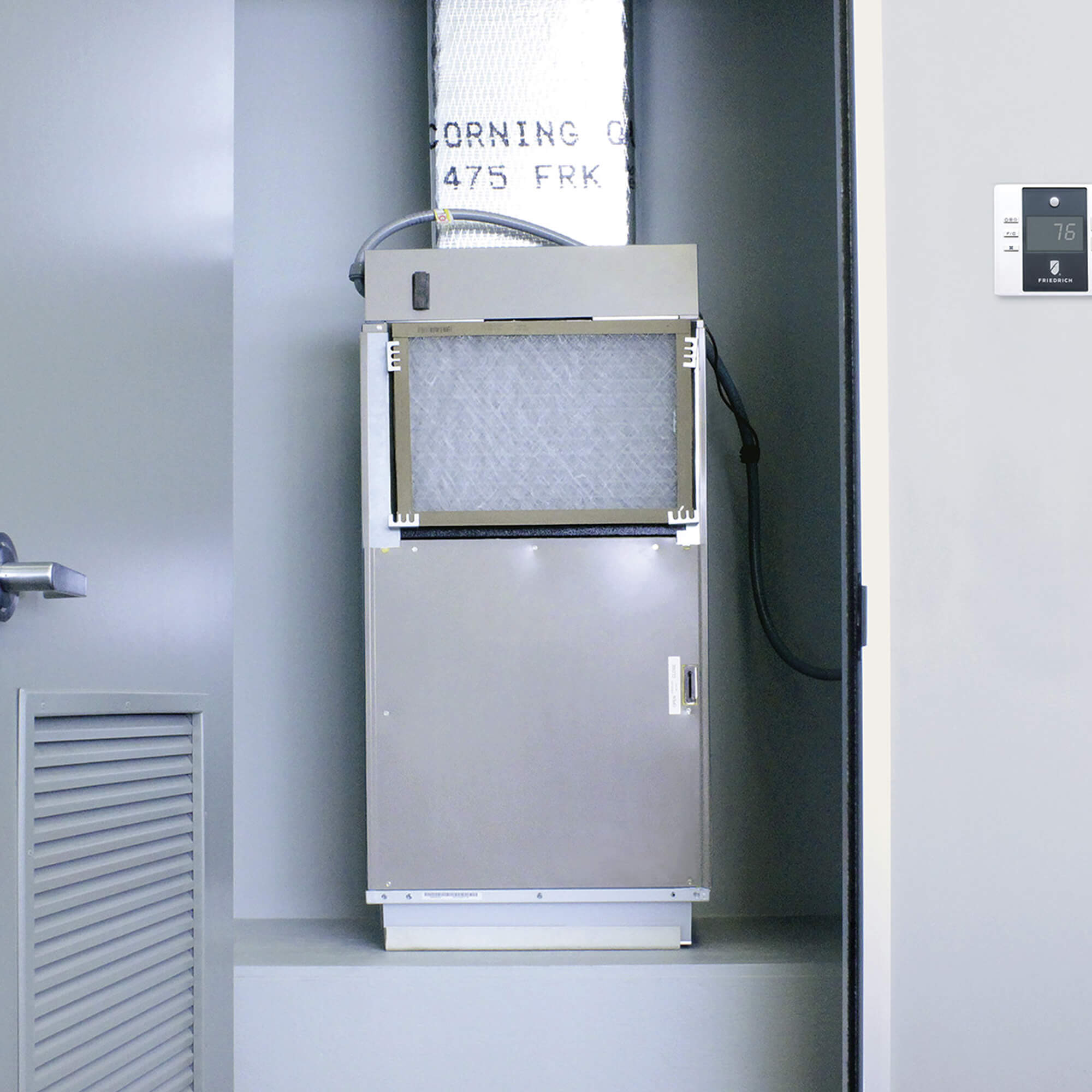

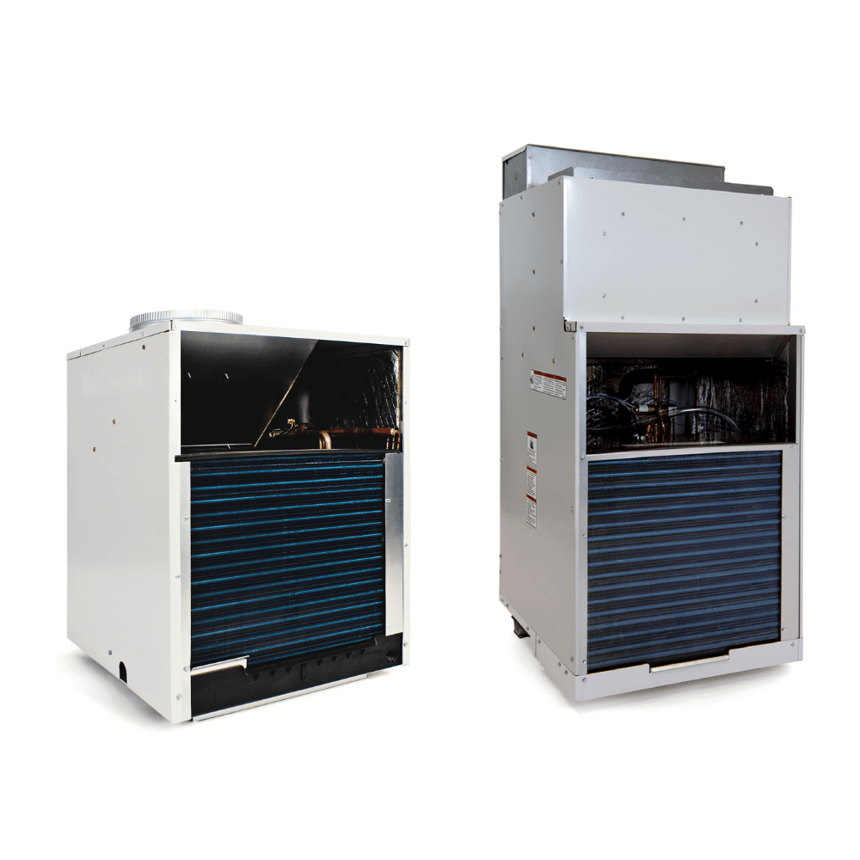

Ducted and closet-mounted, the Friedrich Vert-I-Pak^® eliminates the need for multiple through-the-wall units. The Vert-I-Pak^® unit is installed out of sight, so guests enjoy a more attractive and homelike appearance. A quiet, energy efficient option for suites, extended stay properties, assisted living, a student housing, the Vert-I-Pak^® heat pump is available in capacities ranging from 9,300 to 22,500 Btu.

Download Brochure Plan & Spec Rep

More About This Product

Learn about product features, tech specs, product documents & downloads, model sizing and accessories. Still need help? View our Professional Support Page for more support topics.

Features

Engineered for Quieter Performance

Friedrich’s ‘Free Floating’ chassis design and superior insulation help to eliminate vibration noise. The chassis slides into the wall plenum and a gasket firmly seals the chassis to the patented telescoping plenum. This eliminates vibration noises that are transmitted into the room in competitors’ metal-on-metal fixed installations.

Better Heating and Cooling Option Inside and Out

Vert-I-Pak^®are completely self-contained, helping to eliminate the clutter of outdoor condensing units and the need for vandalism barriers. No refrigerant lines running from floor-to-floor. Fast and easy replacement keeps spaces livable.

Reliable and Durable Quality

Units are equipped with BLDC permanent magnet motors for optimum efficiency and quiet operation. Engineered drain pan won’t rust, eliminating the risk of unsightly rust stains from condensation on the building exterior. Every unit is 100% run tested prior to shipment.

Improved Guest Comfort

Each unit is individually controlled, allowing guests to choose one of two fan speeds with auto or constant fan mode on the Friedrich RT7, RT7P, WRT2, and EM(W)RT2 thermostats. Vert-I-Pak^® Heat Pump models include back-up auxiliary electric heat.

Warranty and Support

Industry-leading warranty features 1-year full warranty on parts and labor and 5-year limited warranty. Nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service.

Installation

Vert-I-Pak^® are designed for installation from any interior side (front, right or left). Units ship ready to install with only electrical and plumbing hook-ups needed. Installation does not require an HVAC technician.

Specifications

Specifications By Model

View basic model specs below. See product brochure for more details on the models shown below.

For more information on prior-generation models, ending in "N", see "N" model product brochure linked here, or enter your model number in our professional product resources page.

Model	Operation	Cooling BTU	Reverse Heating BTU	Voltage	EER	COP @ 47°F	SPECIFICATIONS PDF
VHA09K25RTP	Cool/Heat Pump	9300	8300	230/208	11.0	3.3	Download
VHA09K34RTP	Cool/Heat Pump	9300	8300	230/208	11.0	3.3	Download
VHA09K50RTP	Cool/Heat Pump	9300	8300	230/208	11.0	3.3	Download
VHA09R25RTP	Cool/Heat Pump	9300	8300	265	11.0	3.3	Download
VHA09R34RTP	Cool/Heat Pump	9300	8300	265	11.0	3.3	Download
VHA09R50RTP	Cool/Heat Pump	9300	8300	265	11.0	3.3	Download
VHA12K25RTP	Cool/Heat Pump	11500	10600	230/208	11.0	3.3	Download
VHA12K34RTP	Cool/Heat Pump	11500	10600	230/208	11.0	3.3	Download
VHA12K50RTP	Cool/Heat Pump	11500	10600	230/208	11.0	3.3	Download
VHA12R25RTP	Cool/Heat Pump	12400	11300	265	11.0	3.3	Download
VHA12R34RTP	Cool/Heat Pump	12400	11300	265	11.0	3.3	Download
VHA12R50RTP	Cool/Heat Pump	12400	11300	265	11.0	3.3	Download
VHA18K25RTP	Cool/Heat Pump	18400	16700	230/208	11.0	3.3	Download
VHA18K34RTP	Cool/Heat Pump	18400	16700	230/208	11.0	3.3	Download
VHA18K50RTP	Cool/Heat Pump	18400	16700	230/208	11.0	3.3	Download
VHA18R25RTP	Cool/Heat Pump	18400	16700	265	11.0	3.3	Download
VHA18R34RTP	Cool/Heat Pump	18400	16700	265	11.0	3.3	Download
VHA18R50RTP	Cool/Heat Pump	18400	16700	265	11.0	3.3	Download
VHA24K25RTP	Cool/Heat Pump	22500	19500	230/208	11.0	3.3	Download
VHA24K34RTP	Cool/Heat Pump	22500	19500	230/208	11.0	3.3	Download
VHA24K50RTP	Cool/Heat Pump	22500	19500	230/208	11.0	3.3	Download
VHA24K75RTP	Cool/Heat Pump	22500	19500	230/208	11.0	3.3	Download
VHA24K10RTP	Cool/Heat Pump	22500	19500	230/208	11.0	3.3	Download
VHA24R25RTP	Cool/Heat Pump	22500	19500	265	11.0	3.3	Download
VHA24R34RTP	Cool/Heat Pump	22500	19500	265	11.0	3.3	Download
VHA24R50RTP	Cool/Heat Pump	22500	19500	265	11.0	3.3	Download
VHA24R75RTP	Cool/Heat Pump	22500	19500	265	11.0	3.3	Download
VHA24R10RTP	Cool/Heat Pump	22500	19500	265	11.0	3.3	Download

Documents

Documents & Downloads For This Model

View manuals, guides, warranties, videos and other resources for this category.

Chassis Sizes for this Product

View basic chassis dimensions available below. See product brochure for more details.

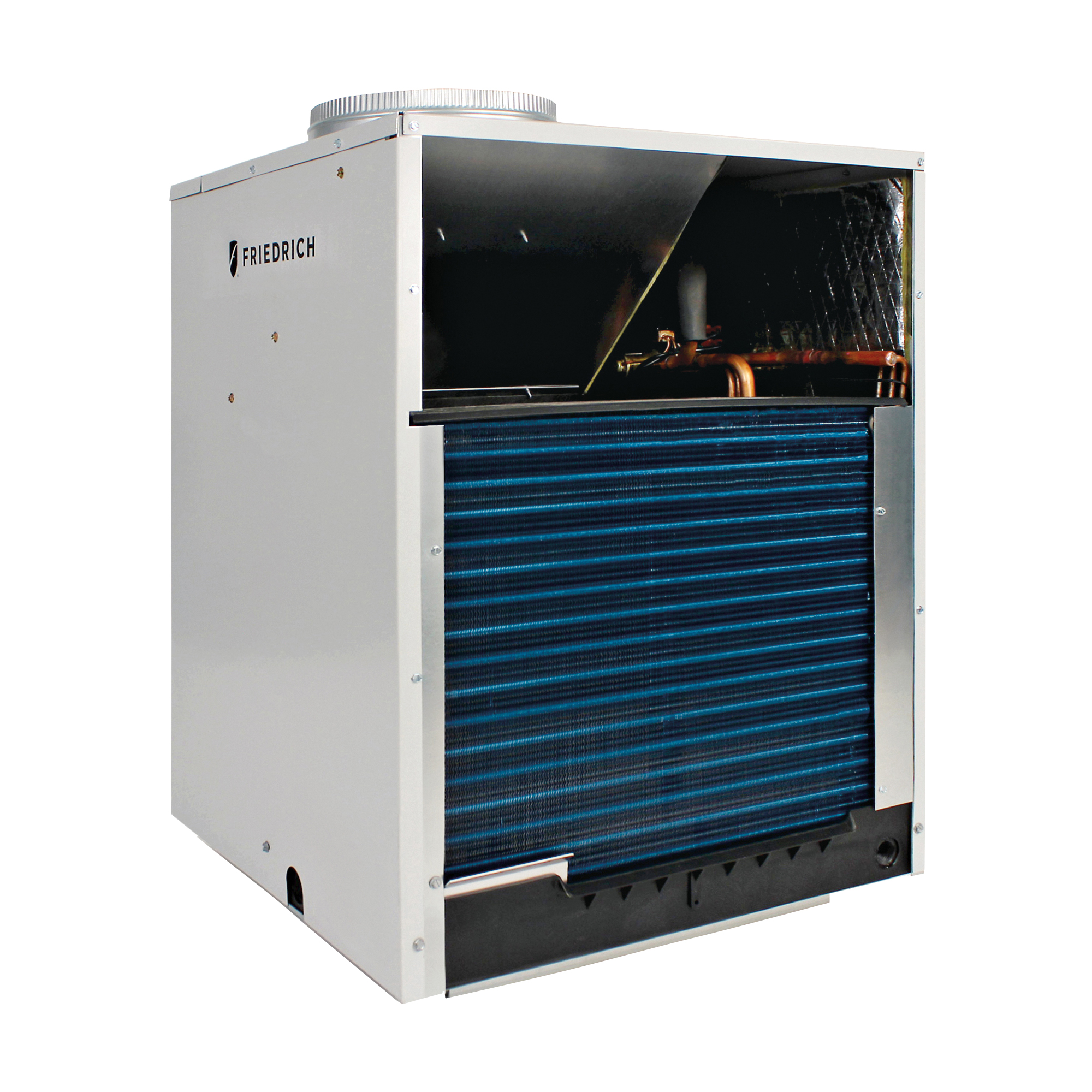

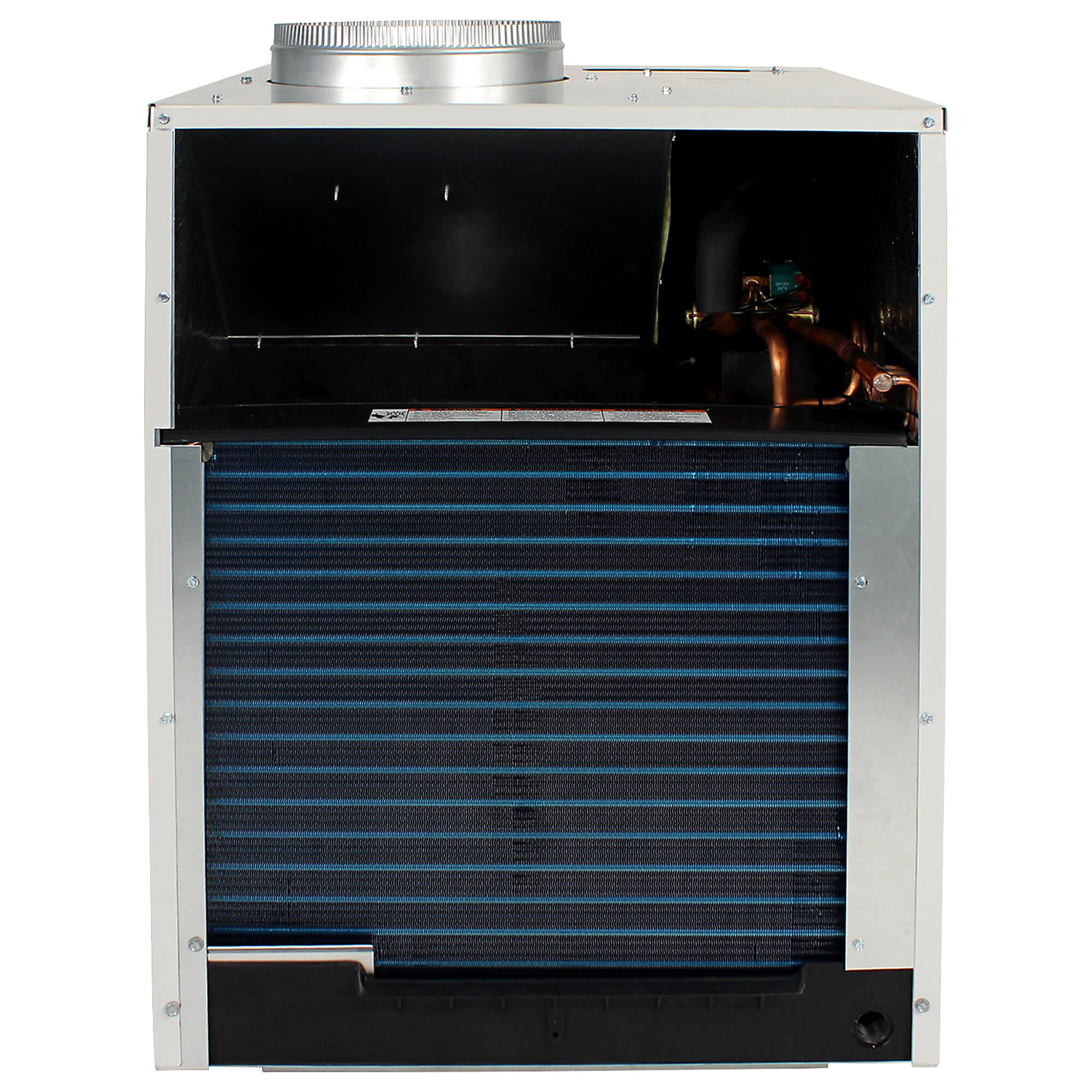

W: 23“ x D: 23“ x H: 32” Vert-I-Pak 9-12 Model Dimensions Applies to model #’s: VHA09K25RTP, VHA09K34RTP, VHA09K50RTP, VHA09R25RTP, VHA09R34RTP, VHA09R50RTP, VHA12K25RTP, VHA12K34RTP, VHA12K50RTP, VHA12R25RTP, VHA12R34RTP, VHA12R50RTP

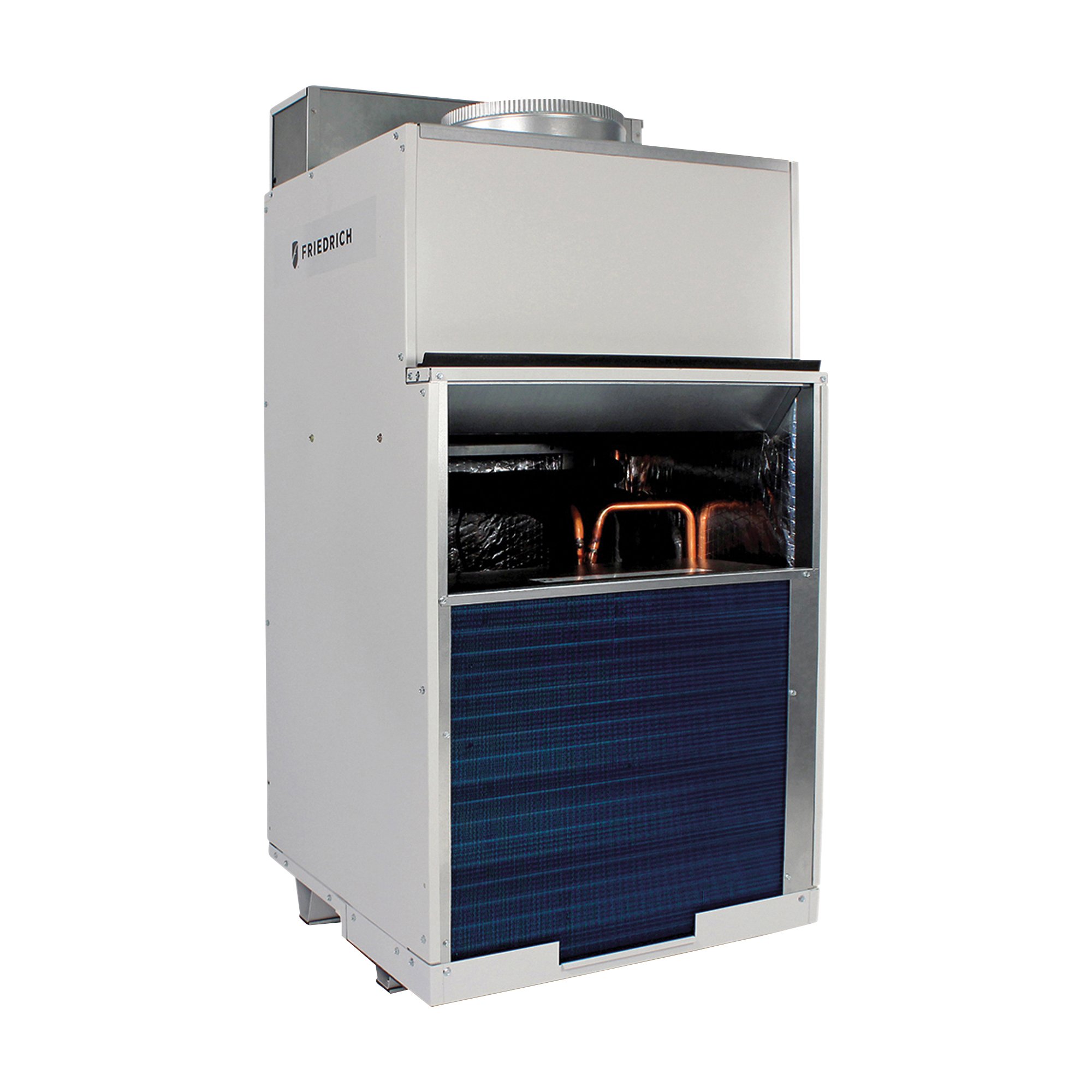

W: 23“ x D: 23“ x H: 47” Vert-I-Pak 18 Model Dimensions Applies to model #’s: VHA18K25RTP, VHA18K34RTP, VHA18K50RTP, VHA18R25RTP, VHA18R34RTP, VHA18R50RTP

W: 23“ x D: 23“ x H: 52” Vert-I-Pak 24 Model Dimensions Applies to model #’s: VHA24K25RTP, VHA24K34RTP, VHA24K50RTP, VHA24K75RTP, VHA24K10RTP, VHA24R25RTP, VHA24R34RTP, VHA24R50RTP, VHA24R75RTP, VHA24R10RTP

Accessories

Accessories For This Product

Vert-I-Pak Architectural Louver, Model #: VPAL2, VPSC2

Applies to model #’s: all VPAK Models

Vert-I-Pak Wall Plenum, Model #: VPAWP1-8, VPAWP1-14

Applies to model #’s: all VPAK Models

Vert-I-Pak Return Air Grille/Access Panel, Model #: VPRG4, VPRG4R

Applies to model #’s: all VPAK Models

Vert-I-Pak First Company Sleeve Adapter, Model #: VPASA1

Applies to model #s: VHA09 and VHA12 Models

Vert-I-Pak Energy Management Thermostat, Model #: EMRT2, EMWRT2

Applies to model #’s: all VPAK Models

Vert-I-Pak Drain Pan, Model #: VPDP2

Applies to model #’s: VHA18 and VHA24

Vert-I-Pak Single Stage Thermostat, Model #: RT7

Applies to model #'s: all VPAK Models

Vert-I-Pak Single Stage Thermostat, Model #: RT7P

Applies to model #'s: all VPAK Models

Vert-I-Pak Single Stage Thermostat, Model #: WRT2

Applies to model #'s: all VPAK Models
