Smart Wi-Fi Through-the-Wall Air Conditioner

Uni-Fit®

The all new Uni-Fit offers outstanding energy efficiency, QuietMaster technology and integrated Wi-Fi control from your smartphone with Friedrich Go™. Also voice compatible. A universal fit for existing sleeves from 24 ½"-27". Ships with a two-piece trim ring that fits over the chassis front. 8,000 - 13,000 Btu/h. Cooling only and cooling + electric heat models.

More About This Product

Learn about product features, tech specs, product documents & downloads, model sizing and accessories. Still need help?  View our Professional Support Page for more support topics.

Features

QuietMaster® Technology

Engineered for quiet performance with superior components. As much as 25% quieter than competitor’s products.

  • Solid steel inner wall
  • Advanced airflow design
  • High-density insulation and foam for sound absorption
  • Aesthetically engineered to block indoor noise
  • Counterweights for vibration dampening

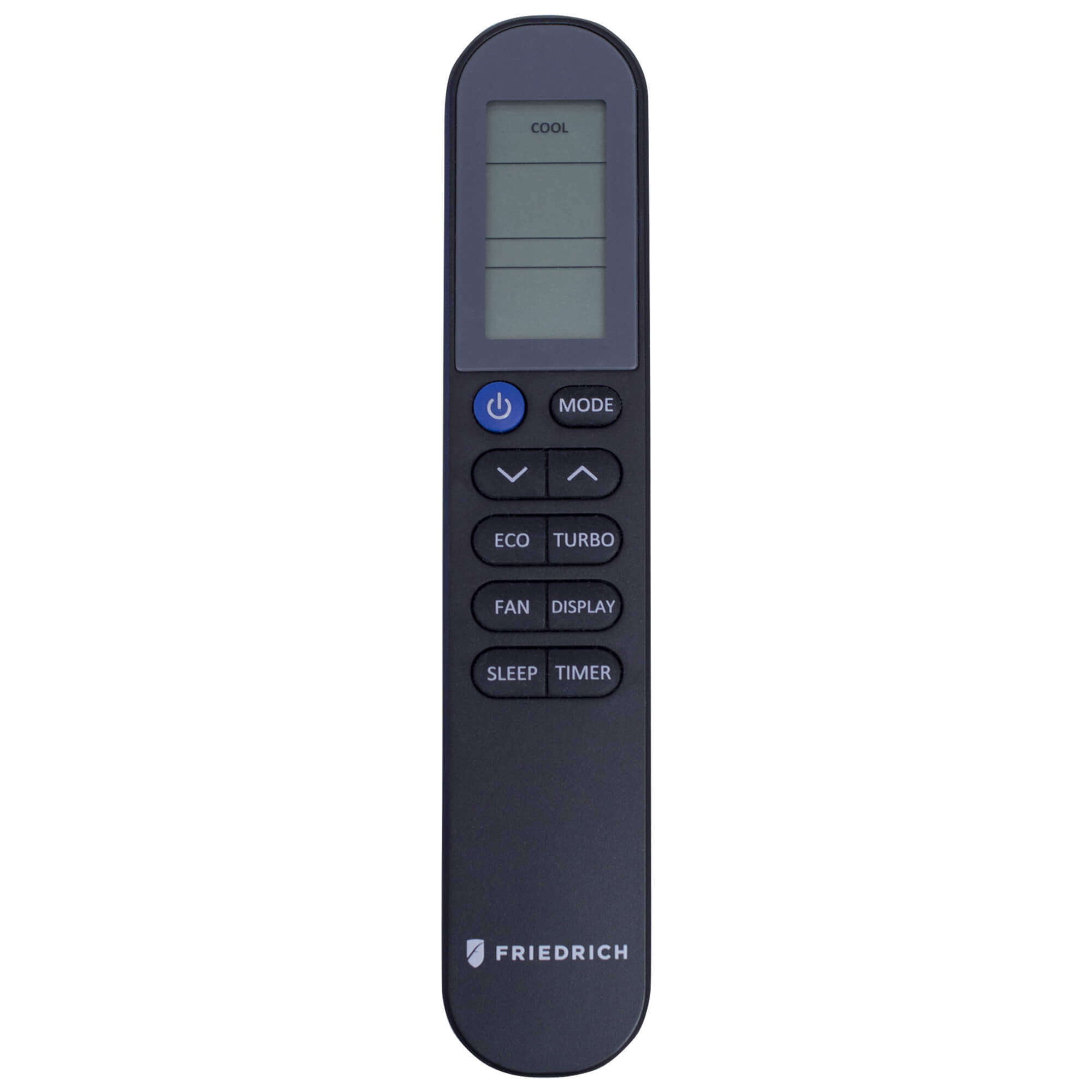

Smart Wi-Fi Control with Voice Command

Home or away, you’re in control with the Friedrich Go™ App. Integrated Wi-Fi control from your smartphone plus voice command compatibility. Simplified set-up gets you connected in minutes.  New intuitive platform makes it easier to take control anytime, anywhere!

Money Saver® Technology

Uni-Fit’s Money Saver® technology helps both your wallet and the Earth stay green. The setting saves money by operating the fan only when cooling.

Comfort & Convenience

Units are equipped with a three cooling and fan-only speeds as well as 8-way air flow control. Uni-Fits will auto restart if power is interrupted.

Earth Friendly

Friedrich’s commitment to environment-friendly cooling is shown in the Uni-Fit. The unit is available in ENERGY STAR qualified models and arrives in recyclable packaging.

Installation

Uni-Fits are designed to fit in 24 ½, 26  and 27-inch sleeves. Each model comes with a universal fit decorative trim ring to fill gaps up to 1" on the sides and ½" on the top of the unit and provide a finished and neat appearance.

Specifications

Specifications By Model

View basic model specs below. See product brochure for more details.

Model Energy Star Qualified Operation Cooling BTU Heating BTU Voltage EER CEER Cooling Area (Sq Ft.) Dimensions H" x W" x D" Specifications PDF
UCT08A10A Y Cool Only 8000 --- 115 10.7 10.6 300-350 14 1/2 x 24 4/19 x 20 7/25 Download
UCT10A10A Y Cool Only 10000 --- 115 10.7 10.6 400-450 14 1/2 x 24 4/19 x 20 7/25 Download
UCT10A30A Y Cool Only 10000 --- 230 10.7 10.6 400-450 14 1/2 x 24 4/19 x 20 7/25 Download
UCT12A10A Y Cool Only 12000 --- 115 10.6 10.5 450-550 14 1/2 x 24 4/19 x 20 7/25 Download
UCT12A30A Y Cool Only 12000 --- 230 10.6 10.5 450-550 14 1/2 x 24 4/19 x 20 7/25 Download
UCT14A30A N Cool Only 14000 --- 230 9.4 9.3 550-700 14 1/2 x 24 4/19 x 20 7/25 Download
UET08A11A N Cool/Elect. Heat 8000 4200 115 9.7 9.6 300-350 14 1/2 x 24 4/19 x 20 7/25 Download
UET10A33A N Cool/Elect. Heat 10000 10600 230 9.7 9.6 400-450 14 1/2 x 24 4/19 x 20 7/25 Download
UET12A33A N Cool/Elect. Heat 12000 10600 230 9.7 9.6 450-550 14 1/2 x 24 4/19 x 20 7/25 Download
UET14A33A N Cool/Elect. Heat 14000 10600 230 9.4 9.3 550-700 14 1/2 x 24 4/19 x 20 7/25 Download
Documents

Documents & Downloads For This Model

View manuals, guides, warranties, videos and other resources for this model.

Sizing

Chassis Sizes for this Product

View basic chassis dimensions available below. See product brochure for more details.

H:14 1/2“ x W: 24 4/19“ x D: 20 7/25” Uni-Fit Model Dimensions Applies to model #’s: UCT08A10A, UCT10A10A, UCT10A30A, UCT12A10A, UCT12A30A, UCT14A30A, UET08A11A, UET10A33A, UET12A33A, UET14A33A

Accessories

Accessories For This Product
