Package Terminal Air Conditioner

FreshAire®

The most advanced PTAC ever.

Inverter compressor, award-winning and patented FreshAire® make-up air system to help achieve ASHRAE 62.1 standards, ultra-quiet operation with the highest STC ratings in the industry*, and optional FreshAire® IAQ accessories for healthy indoor air quality. FreshAire® PTAC is not just best in class, it's in a class of its own. FreshAire_IAQ READY gray and blue
*amongst PTACs with make-up air

More About This Product

Learn about product features, tech specs, product documents & downloads, model sizing and accessories. Still need help?  View our Professional Support Page for more support topics.

Features

Conditioned Fresh Air

Friedrich’s FreshAire® PTAC system helps achieve ASHRAE 62.1-2013 requirements, and brings up to 52 CFM of conditioned, MERV 8 filtered, outside air into the space. Patents-pending technology uses the inverter compressor and main cooling system to optimize temperature and humidity level of incoming air.

Precision Inverter® Technology

Precision Inverter® variable speed compressors deliver efficiencies up to 13 EER and a 15 SEER equivalent. Compressors operate down to 20% of rated capacity, or up to 120%, matching the unit output to the actual demand of the space for increased comfort and lower energy consumption.

Widest Cooling & Heating Range in the Industry

Variable speed technology gives you the flexibility of a full line of PTACs with only two models, and offers the highest available capacity of any 42x16 PTAC on the market at over 17000 Btus.

FreshAire® IAQ Ready

FreshAire® IAQ is a suite of indoor air quality (IAQ) accessories for use with Friedrich Air Conditioners, all with one dedicated purpose - healthy indoor air. This product includes our patented FreshAire® make-up system and is compatible with FreshAire® UV, and FreshAire® Purifier by iWave. Click here for more information on our FreshAire solutions.

The Smoothest PTAC Sound Available

The variable-speed operation of the FreshAire PTAC allows the unit to work at the optimal speed to match the true load of the room. This not only provides the best energy consumption curve but it also adds to guest comfort by eliminating the harsh start-ups associated with single speed compressors.

Comfort & Convenience

Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.

Maintenance and Installation

Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System securely attaches the front each time. Unit may be installed low to the floor.

Specifications

Specifications By Model

View basic model specs below. See product brochure for more details.

Model Operation Cooling BTU Cooling Range Reverse Heating BTU Voltage EER COP @ 47°F REFRIGERANT
PVH09K3FB Cool/Heat Pump/Inverter 9600/9400 6462 - 12099 8200/8500 230/208 12.1/12.1 3.5/3.5 R-410A
PVH12K3FB Cool/Heat Pump/Inverter 12000/11800 7929 - 17142 11600/11800 230/208 11.5/11.5 3.5/3.5 R-410A
PVH09R3FB Cool/Heat Pump/Inverter 9600 6462 - 12099 8500 265 11.8 3.5 R-410A
PVH12R3FB Cool/Heat Pump/Inverter 12000 7929 - 17142 11800 265 11.4 3.6 R-410A
PVH09K3FC Cool/Heat Pump/Inverter 9800/9700 4400-12000 8500/8400 230/208 12.52/12.39 3.51/3.51 R-32
PVH09R3FC Cool/Heat Pump/Inverter 9800 4400-12000 8500 265 12.39 3.6 R-32
PVH12K3FC Cool/Heat Pump/Inverter 12000/11800 4700-13800 11500/11500 230/208 12.08/11.94 3.65/3.65 R-32
PVH12R3FC Cool/Heat Pump/Inverter 12000 4700-13800 11600 265 12.15 3.6 R-32
Documents

Documents & Downloads For This Model

View manuals, guides, warranties, videos and other resources for this model.

2019

PTAC Brochure

2020

PTAC Brochure

2019, 2020

Friedrich FreshAire PTAC Detail Video

2020

Friedrich's FreshAire PTAC Intro Video

2017

Friedrich PTAC Sound Performance Video

2021

PTAC Brochure

2022

PTAC Brochure

2022

How to use Friedrich's Interactive Parts Viewer Video

2016, 2017, 2018, 2019, 2015, 2020, 2021, 2022, 2023

PTAC PDXWSEXT-18-24 Installation Manual

2016, 2017, 2018, 2019, 2015, 2020, 2021, 2022, 2023

PTAC PDXWS(A) Installation Manual

2018, 2019, 2020, 2021, 2022, 2023

FreshAire PTAC Installation & Operation Manual (2018-2023)

2021, 2022

PTAC PXCJA Accessory Installation Manual

2021, 2022

PTAC PXSB Accessory Installation Manual

2021, 2022

PTAC PDX Accessory Installation Manual

2022

UVT1 Accessory Installation Manual

2018, 2019, 2020, 2021, 2022, 2023, 2024

FreshAire PTAC Service Manual (R-410A Models)

2023

FreshAire PTAC Accessory VRPXEMRT2 Manual

2023

FreshAire PTAC Accessory VRPXEMWRT2 Manual

2019

PTAC & Vert-I-Pak Accessory RT6 Manual

2020, 2021, 2022

PTAC & Vert-I-Pak Accessory EMOCT Manual

2019

PTAC & Vert-I-Pak Accessory RT6P Manual

2020, 2021, 2022

PTAC & Vert-I-Pak Accessory EMRT2 Manual

2019

FreshAire PTAC Product Profile

2020

FreshAire PTAC Product Profile

2021

FreshAire PTAC Product Profile

2023

FreshAire PTAC Product Profile

2019

FreshAire PTAC Submittal

2020

FreshAire PTAC Submittal

2021

PTAC FreshAire Series Submittal

2023

PTAC FreshAire Series Submittal

2019

FreshAire PTAC Warranty

2021

FreshAire PTAC Warranty

2021

UVT1 UV Light Kit Installation on a Friedrich PTAC

2016, 2017, 2018, 2019, 2015, 2020, 2021, 2022, 2023, 2024

PXSBXXXXX Installation Manual

2023, 2024

PTAC PDXWSEZ Sleeve Installation Manual

2024

PTAC Brochure

2024

FreshAire PTAC Submittal

2024

FreshAire PTAC Service Manual (R-32 Models)

Sizing

Chassis Sizes for this Product

View basic chassis dimensions available below. See product brochure for more details.

H: 16“ x W: 42“ x D: 21” FreshAire PTAC Model Dimensions Applies to model #’s: PVH09K, PVH12K, PVH09R, PVH12R

Accessories

Accessories For This Product

PTAC Wall Sleeve, Model #: PDXWSA

Applies to model #’s: all PTAC Models

PTAC Deep Wall Sleeve, Model #’s: PDXWSEXT18, PDXWSEXT24

Applies to model #’s: all PTAC Models

PTAC Friedrichlink Energy Management Thermostat, Model #’s: EMRT2, EMWRT2

Applies to model #’s: all PTAC Models

PTAC Friedrichlink Energy Management Thermostat, Model #’s: VRPXEMRT2

Applies to model #’s: preferred for FreshAire PTAC

PTAC Friedrichlink Energy Management Thermostat Online Connection Kit, Model #: EMOCT

Applies to model #’s: all PTAC Models

PTAC Remote Thermostat Escutcheon Kit, Model #: PDXRTB

Applies to model #’s: all PTAC Models

PTAC Conduit Kit/ Junction Box, Model #: PXCJA

Applies to model #’s: all PTAC Models

PTAC Subbase Disconnect Switch, Model #: PXDS

Applies to model #’s: all PTAC Models

PTAC Standard Grille, Model #: PXGA

Applies to model #’s: all PTAC Models

PTAC Architectural Grilles, Model #: PXAA, PXBG, PXSC

PXAA - clear extruded aluminum, PXBG - beige acrylic enamel, PXSC - available in custom colors. Applies to model #’s: all PTAC Models

PTAC Decorative Subbase (black), Model #: PXSBA

Applies to model #’s: all PTAC Models

PTAC Electrical Subbase, Model #’s: PXSB23020, PXSB23030, PXSB26515, PXSB26520, PXSB26530

Applies to model #’s: all PTAC Models

PTAC Filters (10 pack), Model #: PXFTB

Applies to model #’s: FreshAire and ZoneAire Select PTAC Models

PTAC Replacement Merv 8 Filters (10 pack), Model #: PXFAFT10

Applies to model #’s: FreshAire PTAC Models Only

PTAC Condensate Drain Kit, Model #: PXDR10

Applies to model #’s: all PTAC Models

PTAC Lateral Duct Adapter and Lateral Duct Extension, Model #: PDXDAA, PDXDEA

Applies to model #’s: all PTAC Models

PTAC FreshAire Power Cords, Model #’s: PXPCFA23015, PXPCFA23020, PXPCFA23030, PXPCFA26515, PXPCFA26520, PXPCFA26530

Applies to model #’s: PVH09K, PVH12K, PVH09R, PVH12R

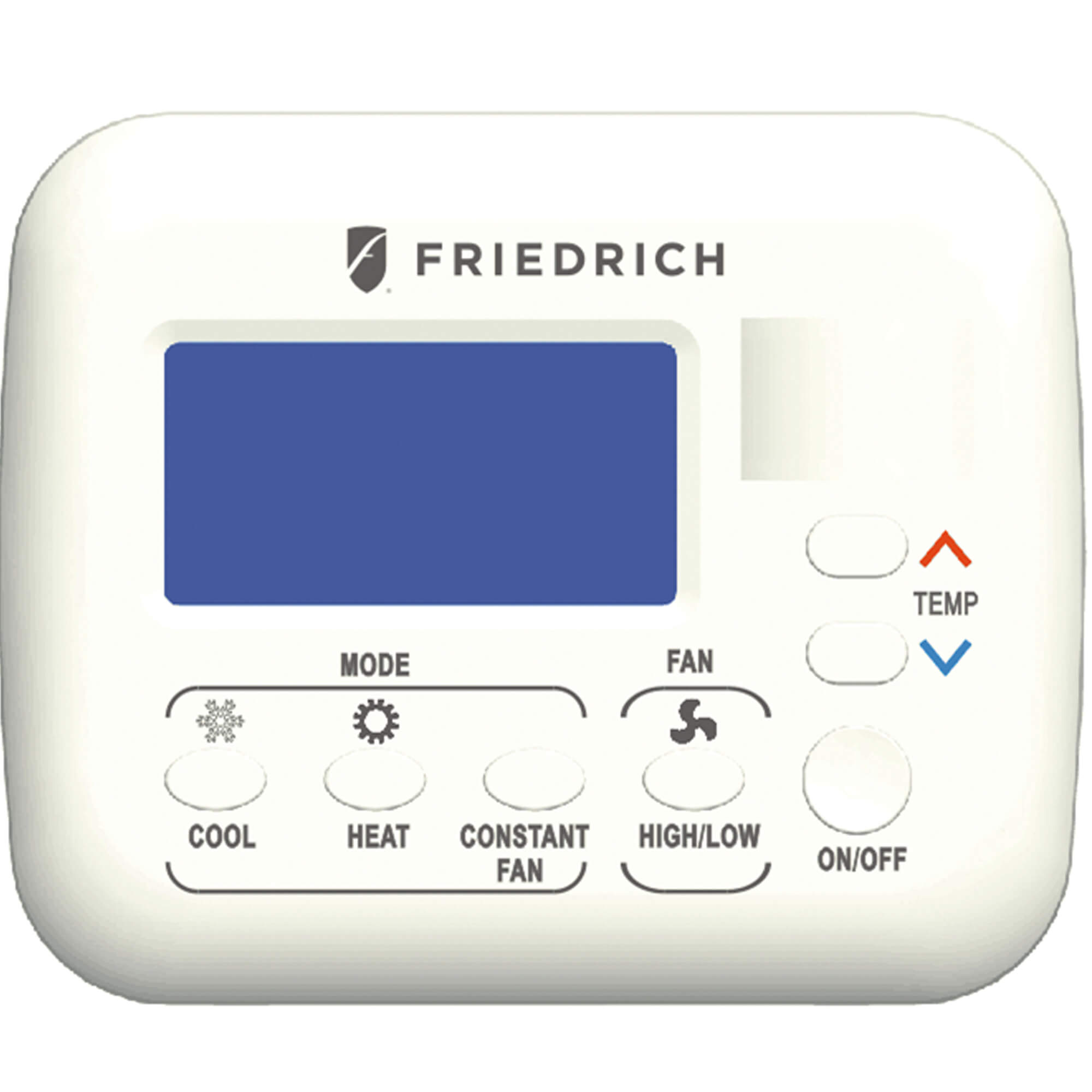

PTAC Digital Remote Thermostat, Model #: RT7

Applies to model #'s: all PTAC Models

PTAC Digital Remote Thermostat, Model #: RT7P

Applies to model #'s: all PTAC Models

PTAC Digital Remote Thermostat, Model #: WRT2

Applies to model #'s: all PTAC Models

Nu-Calgon APWM1 iWave-M

Applies to model #'s: all PTAC Models

FreshAire UV-C Light, Model #: UVT1

Applies to model #s: all PTAC Models
