Multi Zone Ductless Split System

Floating Air® Pro

Floating Air® Pro was designed with the HVAC technician in mind. Our Pro multi-zone extends the versatility of the single zone line to condition up to 4 independent zones. Create true room-by-room comfort for your customers with individually controlled indoor options, NOW including built-in Wi-Fi with voice-control capability. Mix and match up to 5 indoor units to 1 outdoor unit. Indoor options are available in a sleek wall mount, a discrete ceiling cassette, or our Insider® - an inconspicuous concealed duct unit. Wall mount units offer the revolutionary new Fast Pro® design, Friedrich's contractor-friendly features for easy installation and up to 50% faster service. Our Floating Air® Pro multi-zone line offers heat pump systems ranging from 9,000 to 36,000 Btu and also comes in 115V options, making installation even easier. The options are endless!

More About This Product

Learn about product features, tech specs, product documents & downloads, model sizing and accessories. Still need help?  View our Professional Support Page for more support topics.

Features

Precision Inverter® Technology

Floating Air® Pro units are equipped with a variable speed compressor. This technology not only increases the unit’s energy efficiency but also minimizes noise disruptions with ultra quiet operation.

Designed for Easier Service and Maintenance

Friedrich Fast Pro® was designed with the HVAC technician in mind. In a few easy steps that can be performed in minutes, the entire blower wheel assembly can be removed for easier, faster cleaning and service. Also, contractors will have easy access to the terminal blocks. Fast Pro will save hours on the jobsite.

Operates in Extreme Conditions

In cooling mode, Friedrich’s Fast Pro® technology can operate at low ambient temperatures as low as 5°F. Operation in heating mode will continue at low ambient temperatures as low as -4°F.

Eco Friendly Comfort

Select Floating Air® Pro models are ENERGY STAR® qualified. All models come in recyclable packaging.

Industry-Leading Warranty

Floating Air® units come with a standard 7-year limited parts warranty and a 10-year compressor warranty.

Installation

All Friedrich ductless models are required to be installed by a licensed HVAC contractor.

Specifications

Specifications By Model

View basic model specs below. Please note that all models shown below offer cooling & heat pump operation. See product brochure for more details.

Unit Model Unit Type Energy Star Qualified Cooling BTU Cooling Area (Sq Ft.) SEER EER Heating BTU HSPF COP @47°F Voltage Specifications PDF
FPHMW07A3A WallMount Y 7000 up to 450 0 0 8500 0 0 230 Download
FPHFW09A3A WallMount Y 9000 up to 450 0 0 9500 0 0 230 Download
FPHFW12A3A WallMount Y 12000 up to 600 0 0 13000 0 0 230 Download
FPHFW18A3A WallMount Y 18000 up to 800 0 0 19000 0 0 230 Download
FPHFW24A3A WallMount Y 24000 up to 1200 0 0 24200 0 0 230 Download
FPHFD09A3A Concealed Ducted N 9000 up to 450 0 0 10000 0 0 230 Download
FPHFD12A3A Concealed Ducted N 12000 up to 600 0 0 12500 0 0 230 Download
FPHFD18A3A Concealed Ducted N 18000 up to 800 0 0 19000 0 0 230 Download
FPHFC09A3A Cassette Y 9000 up to 450 0 0 10200 0 0 230 Download
FPHFC12A3A Cassette Y 12000 up to 600 0 0 13500 0 0 230 Download
FPHFC18A3A Cassette Y 18000 up to 800 0 0 20400 0 0 230 Download
FPHFC24A3A Cassette Y 24000 up to 1200 0 0 27000 0 0 230 Download
FPHMR24A3A Outdoor Y 24000 up to 1200 22.0 12.5 24000 11 3.66 230 Download

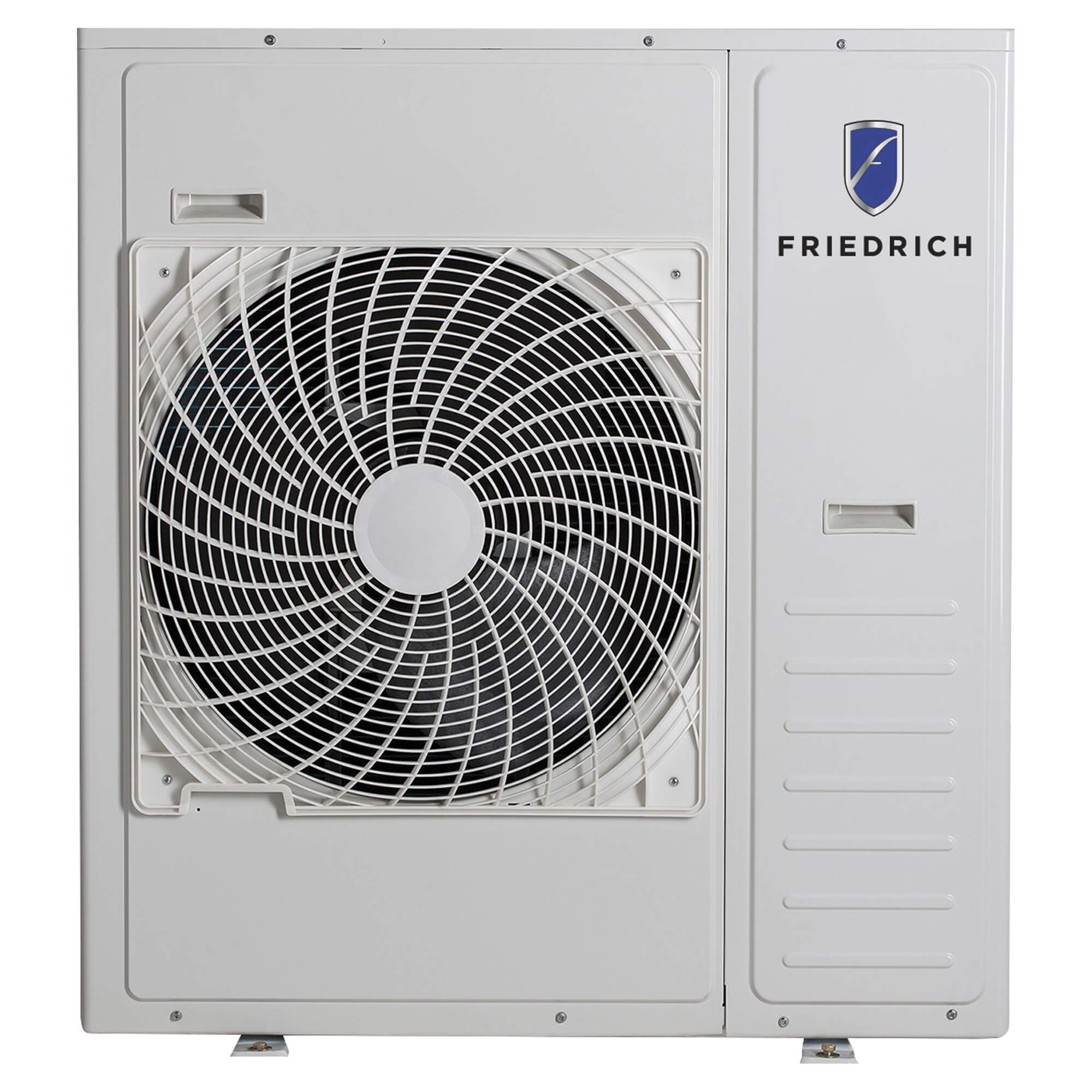

FPHMR36A3A Outdoor Y 32000 up to 2000 21.0 12.5 36000 11 3.37 230 Download
Documents

Documents & Downloads For This Model

View manuals, guides, warranties, videos and other resources for this model.

2019

Floating Air Ductless Split System Brochure

2020

Floating Air Ductless Split System Brochure

2020

The New Floating Air Ductless Split System with Integrated Wi-Fi Video

2010

Friedrich Ductless Split Air Conditioning Cooling Systems Video

2021

Floating Air Ductless Split System Brochure

2022, 2023

Floating Air Ductless Split System Brochure

2023

Mini UV Led IAQ Installation on a Friedrich Ductless Video

2023

Converting from Celsius to Fahrenheit on a Floating Air Pro & Premier Ductless

2021

FriedrichGo App (Android) - How to Connect Your Unit Video

2021

FriedrichGo App (IOS) - How to Connect Your Unit Video

2022

How to use Friedrich's Interactive Parts Viewer Video

2019, 2020, 2021, 2022, 2023, 2024

Floating Air Pro Multi-Zone Ductless Service Manual

2020, 2021

Floating Air Pro Multi-Zone Installation & Operation Manual

2023

Floating Air Pro Multi-Zone Ductless Mini-Split Parameter Capabilities Video

2019

Floating Air Pro Ductless Multi-Zone 24K Outdoor (FPHMR24A3A) Installation & Operation Manual

2019, 2020

Floating Air Pro Ductless FPHMR24A3A Multi-Zone 24K Mixed Ducted and Non-Ducted Energy Guide

2019, 2020

Floating Air Pro Ductless FPHMR24A3A Multi-Zone 24K Non-Ducted Energy Guide

2019, 2020

Floating Air Pro Ductless FPHMR24A3A Multi-Zone 24K Ducted Energy Guide

2019, 2020

Floating Air Pro Ductless FPHMR36A3A Multi-Zone 36K Non-Ducted Indoor Units Energy Guide

2019, 2020

Floating Air Pro Ductless FPHMR36A3A Multi-Zone 36K Ducted Indoor Units Energy Guide

2019, 2020

Floating Air Pro Ductless FPHMR36A3A Mult-Zone 36K Mixed Ducted and Non-Ducted Indoor Units Energy Guide

2019, 2020

Floating Air Pro Ductless FPHMR18A3A Multi-Zone 18K Non-Ducted Mixed Ducted Energy Guide

2019

Floating Air Pro Ductless Multi-Zone 36K Outdoor (FPHMR36A3A) Installation & Operation Manual

2019, 2020

Floating Air Pro Ductless Single/Multi-Zone Cassette Installation & Operation Manual

2020

Floating Air Pro Ductless Single Zone Cassette Ducted Condenser/Outdoor Unit Installation & Operation Manual

2020

Floating Air Pro Single Zone Concealed Duct The Insider FPHSD36A3B Installation & Operation Manual

2020

Floating Air Pro Ductless Single/Multi-Zone Cassette Installation & Operation Manual

2020

Floating Air Pro Ductless Single-Zone Cassette FPHFC36A3B Installation & Operation Manual

2020

FriedrichGo Wi-Fi Module for Cassette Models Installation & Operation Manual

2020

Floating Air Pro Single Zone Concealed Duct The Insider Installation & Operation Manual

2019

Floating Air Pro Ductless Multi-Zone "The Insider" Concealed Ducted Installation & Operation Manual

2019

Floating Air Pro Ductless Multi Zone Wall-Mounted Indoor (FPHMW07A3A (multi only), FPHFW09A3A, FPHFW12A3A, FPHFW18A3A, FPHFW24A3A) Installation & Operation Manual

2019

Floating Air Pro Ductless Remote Controller Manual

2019

Floating Air Pro Ductless Accessory FPCG182436 Manual

2019

Floating Air Pro Ductless Accessory FPCG0912 Manual

2019, 2020, 2021, 2022, 2023, 2024

Floating Air Premier & Pro Ductless Wall Controller FPWC1 Accessory Manual

2023

FriedrichGo Wi-Fi Operation Manual Guide Floating Air Pro & Premier

2020

Floating Air Pro Concealed Ducted "The Insider" Multi Zone Submittal

2020

Floating Air Pro Ceiling Cassette Multi Zone Submittal

2020

Floating Air Pro Wall-Mount Multi Zone Submittal

2019

Floating Air Pro Ductless Warranty

2020, 2021

Floating Air Pro Ductless Split Systems Warranty

2020

Friedrich- How Efficient Are Ductless Video

2020

Friedrich- How Quiet Is Friedrich Ductless Video

2020

Friedrich- Importance of Professional Installation Video

2020

Friedrich- Why Choose a Ductless Mini Split Video

2020

ALL NEW Friedrich Floating Air Ductless Line with FastPro Video

2020

Floating Air Ductless Split Master Parts List

2020

Floating Air Ductless Pro & Premier Extended Capacity Charts

2020, 2021, 2022, 2023

Floating Air Pro Multizone Extended Capacity Charts

2024

DSSXEMWRT3 Wireless Energy Management Thermostat IOM

2024

Floating Air Ductless Split System Brochure

2024

Floating Air Ductless Split System Warranty

2024

Floating Air A2L Single Zone Wall Mount Ductless Mini-Split Installation & Operation Manual

Sizing

Chassis Sizes for this Product

View basic chassis dimensions available below. See product brochure for more details.

H: 37 3⁄8“ x W: 10 3⁄4“ x D: 8 1⁄8” Floating Air Pro Model Dimensions Applies to model #’s: FPHMW07A3A, FPHFW09A3A, FPHFW12A3A

H: 48“ x W: 12 5⁄8“ x D: 9 1⁄4” Floating Air Pro Model Dimensions Applies to model #’s: FPHFW18A3A

H: 48“ x W: 12 5⁄8“ x D: 9 1⁄4” Floating Air Pro Model Dimensions Applies to model #’s: FPHFW24A3A

H: 37 3⁄8“ x W: 33“ x D: 13 3⁄8“ Floating Air Pro Model Dimensions Applies to model #’s: FPHMR24A3A

H: 37 3⁄8“ x W: 41 3⁄8“ x D: 13 3⁄8“ Floating Air Pro Model Dimensions Applies to model #’s: FPHMR36A3A
